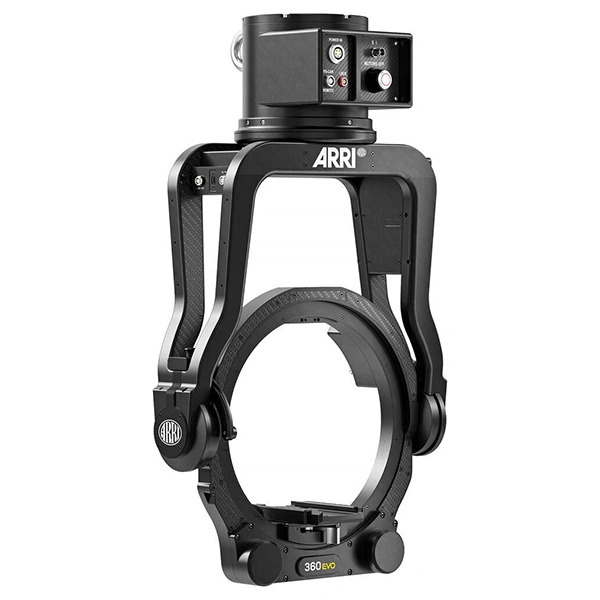

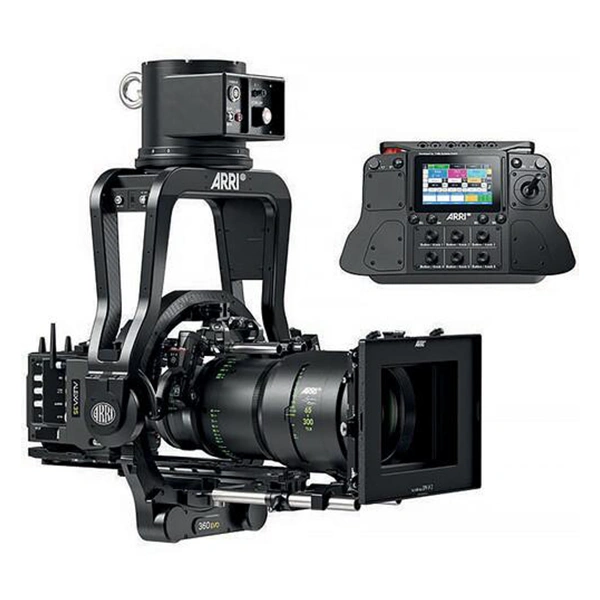

The ARRI 360 EVO Stabilized Remote Head (Basic Set) is ARRI’s flagship 3-axis stabilized remote system, succeeding the highly popular SRH-360. Built specifically for large cinema camera packages, it introduces a full 360-degree rotation on both the Pan and Roll axes.
Importantly, the roll axis rotates precisely around the optical center of the lens. This means you can execute barrel rolls, complex diagonal rolls, or Dutch angle corrections without losing your framing tracking center.
KEY HIGHLIGHTS:
| Maximum Camera Payload: Heavy-duty capacity up to 66 lbs (30 kg). It effortlessly flies an ALEXA 35 or Sony Venice 2 paired with large studio anamorphic glass or cinema zooms. |
| Head Base Weight: Lightweight profile of only 25.5 lbs (11.6 kg). This creates an elite weight-to-payload ratio, minimizing the structural strain placed on smaller telescopic crane noses. |
| Roll Axis Capacity: Allows up to two complete, consecutive 360-degree turns utilizing a robust, heavy-duty internal ring cable assembly. |
| Centrifugal G-Force Compensation: Intelligent internal stabilization algorithms dynamically inject high-torque motor power to instantly counteract centrifugal force when tracking fast corners on tracking vehicles. |
| Dual-Voltage Camera Power: Delivers integrated 12V and true 24V high-amperage camera power directly through the head’s baseplate. You can run an ALEXA 35 or ARRI Amira natively without hanging heavy external voltage-upstep bricks. |
| Dedicated IO Arrays: Features dedicated pass-throughs for LBUS connectivity, 12V AUX power, 12V/Tally for live broadcast lines, and a high-bandwidth 6G-SDI video path. |
| Lower Yoke Extension Box: Features an extra integrated junction pad on the lower yoke containing a USB-C service socket for rapid software updates and dual supplemental accessory power outlets. |
Includes
- ON REQUEST
