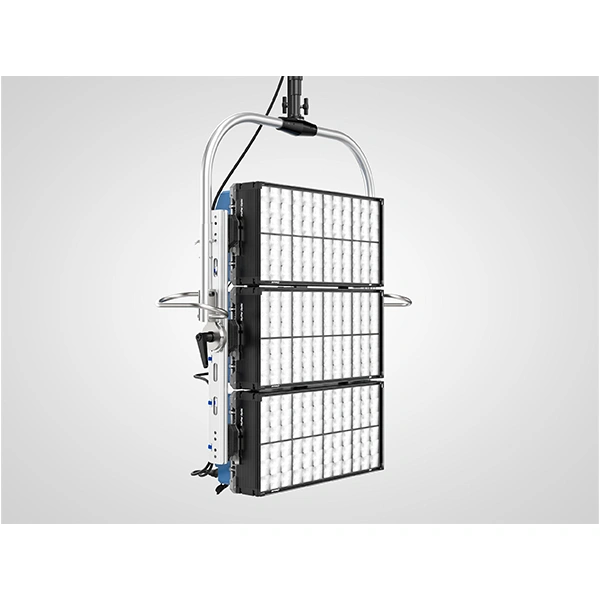

The ARRI SkyPanel X23 is a heavy-duty, large-format configuration of ARRI’s all-weather modular LED system. By linking three individual X21 units vertically inside a robust aluminum frame, the X23 forms a massive 2:3 panel array designed to compete directly with traditional 4kW HMI fixtures or large overhead spacelights
KEY HIGHLIGHTS:
- Colossal Output: Generates up to 14,400 lux at 10 meters (33 feet) when configured as a hard light.
- Next-Gen Color Engine: Utilizes an advanced RGBACL full-spectrum light engine (Red, Green, Blue, Amber, Cyan, Lime). This expands the dynamic CCT range from a warm 1,500K to an icy 20,000K.
- IP66 All-Weather Rating: Completely sealed against heavy rain, dust, and high-pressure water jets, eliminating the need for rain tents or plastic coverings on location
- 24 Controllable Pixel Zones: Features 24 independently addressable pixel segments (8 per panel), allowing for incredibly high-resolution pixel mapping and fluid lighting effects.
- Unified Control Structure: Despite being composed of three separate physical lights, the entire array acts as a single intelligent fixture. It requires only one X Modular Yoke, one All-Weather Control Panel, and a single DMX profile.
Includes
| 3 x SkyPanel X21 Light Engines: The core all-weather (IP66) RGBACL LED fixtures |
| 1 x ALL-WEATHER Control Panel: The detachable, weatherproof display unit that controls all three panels simultaneously |
| 3 x X21 Domes: Standard protective diffusion domes that snap onto the front of each panel for a native soft-light output |
| 1 x SkyPanel X23 Power Supply Unit (PSU): A single, high-capacity, weather-sealed external power brick that feeds all three light engines |
| 1 x Power Supply Unit (PSU) Slider: A mounting bracket to secure the heavy power brick cleanly onto the frame or a light stand |
| 1 x Mains Cable (powerCON TRUE1 TOP): Heavy-duty, outdoor-rated power cable (terminated in Edison, Schuko, or Bare Ends depending on your regional order) |
| 1 x Dedicated X23 DC Y-Cable Set: The weatherproof power routing cables that split electricity from the single PSU to the three individual light engines |
| 1 x SkyPanel X23 Modular Frame: The structural metal cage that holds the three X21 panels in a vertical stack [none]. |
| 1 x X Modular Yoke (with 28mm / Junior Pin): The heavy-duty stirrup mount used to tilt and mount the combined frame onto a high-capacity combo stand or rigging truss |
| 1 x SkyPanel X23 Quick-Lock Bracket Set: The heavy-duty locking pins and latching hardware required to secure the panels into the modular frame [none]. |
